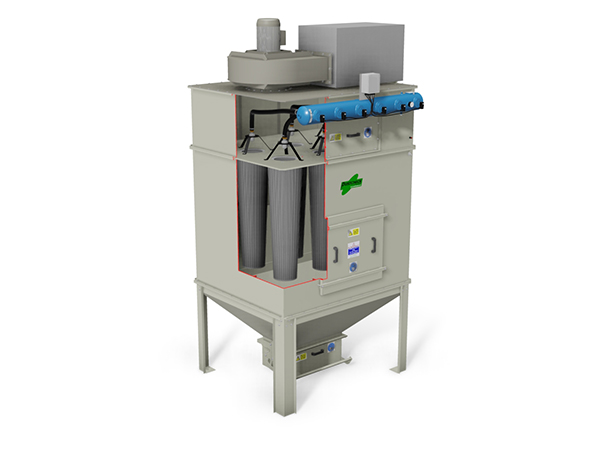

The Maxi Series of reverse pulse cleaning dust collector units are a compact solution for medium to large type applications and use the 328mm diameter ‘deep pleat’ cartridge technology for maximum filter area effectiveness.

The rugged carbon steel (optional stainless steel) construction comes with options of weatherproofing, single and double height, both conical and parallel filter elements and a range of input voltages.

The units can also utilise either ‘jet’ or ‘wing’ online cleaning depending on the cleaning efficiency requirements (wing cleaning gives the benefit of ‘off-line’ cleaning in an ‘on-line’ system).

Unit formats can be varied to best suit the available footprint and other hopper discharge options are also available to tailor for all requirements.

Need advice? Talk to an expert today.

Speak to one of our experienced team for help and guidance by calling 01952 290500

We're available Monday-Thursday, 8:15AM-4:30PM and Friday until 3:15PM.

Get in touch Get a quote

Activate 12 month warranty

Activate Now

Features

  • Filter area from 20 to 480m2
  • Filter medias to suit all applications and products with two or three deep formats
  • Standard collection bin with ‘Reverse cam’ bin locating technology
  • Top or floor mounted fan sets
  • -0.02 to +0.04 Bar(g) operating pressure rating (higher available on request)
  • 0.2 Bar(g) pressure shock resistant (PSR) as standard
  • Differential pressure (clean on demand) controller option
  • ATEX options with integral explosion relief
  • Bin liner facility and isolation valve

Advantages

  • Minimal maintenance requirements and long filter life – reduces downtime, saves money
  • High efficiency and low emissions to atmosphere and guarantees air quality – protects personnel and ensures compliance with COSHH and EPA regulations
  • Versatile planning in flexibility
